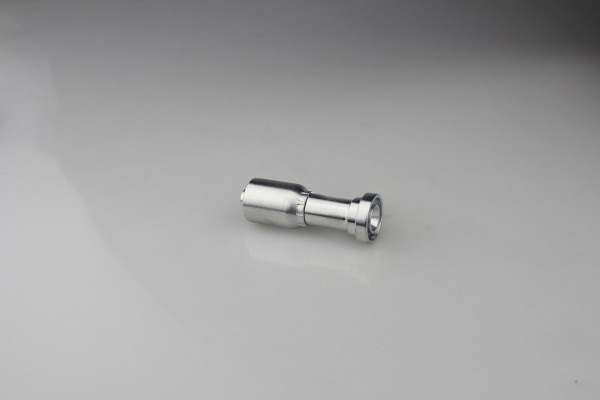

87611one piece fittings are SAE flange 6000PSI for one or two-wire integral fittings. Sizes from 08 to 32 are involved in YH production daily. 87611one piece fittings are 87611 fittings crimped with 00210 or 00110 ferrules by ferrule crimping machines. Good quality materials are put into production so that good quality products can be ensured. One piece fittings are all manufactured by CNC machine to control the high precision demands.
Details
√ Part no.: 87611one piece(SAE Flange 6000PSI For One Or Two-wire Integral Fitting)
√ Material: fittings are coming in 45 carbon steel; ferrules are in mild steel(20 carbon steel)
√ Ferrule types: 00210(ferrule for two wire braided hose); 00110(ferrules for one wire braided hose); 03310(ferrules for one or two wire braided hose)
√ Samples: less than two sets is free of charge for checking the quality

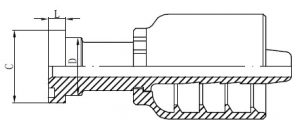

Drawing
Technical Data Table
| 代号 | 法兰尺寸 | 胶管 | 尺 寸 | |||
| PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | |||
| 公称内径DN | 标 号 DASH | C | D | L | ||
| 87611-08-08one piece | 1/2" | 12 | 8 | 31.8 | 23.9 | 7.9 |
| 87611-12-12one piece | 3/4" | 20 | 12 | 41.3 | 31.7 | 8.9 |
| 87611-16-16one piece | 1" | 25 | 16 | 47.6 | 38 | 9.6 |
| 87611-20-20one piece | 1.1/4" | 32 | 20 | 54 | 43.6 | 10.4 |
| 87611-24-24one piece | 1.1/2" | 40 | 24 | 63.5 | 50.8 | 12.7 |
| 87611-32-32one piece | 2" | 50 | 32 | 79.4 | 66.5 | 12.7 |

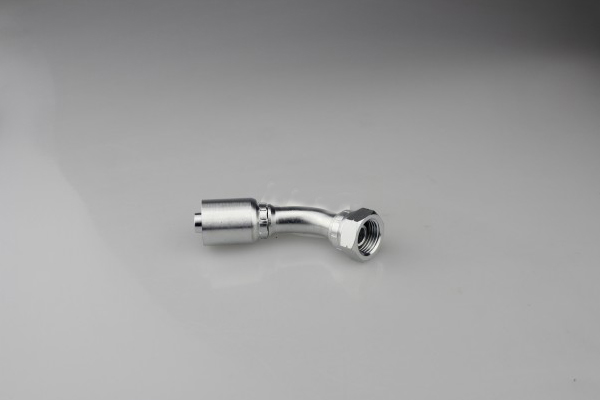

30542one piece fittings are 45°elbow metric female 24°cone with o-ring for one, two or four braided hydraulic hoses which are heavy types. Different types of one piece fittings are involved in our production daily. Many thread types and sizes can be your choose. And please visit our website or download catalog for detailed data.
Details
√ Part no.: 30542one piece(45°Metric Female 24°Cone H.T. With O-ring Four-Wire Integral Fitting)
√ Types: 30542 fittings with related ferrules crimped
√ Sizes: sizes showed on technical data table are standard ones in YH Hydraulic
√ Samples: less than 3pcs is free of charge for checking the quality
√ Delivery time: Less than 7 days for stock products
√ Stock condition: a wide variety of fittings are kept in our stock

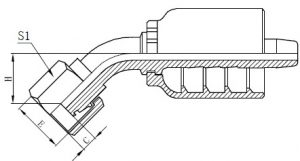

Drawing
Technical Data Table
| 代号 | 螺纹E | 胶管 HOSE BORE | 管子外径 | 尺 寸 DIMENSIONS | |||
| PART NO. | THREAD E | 公称内径DN | 标 号 DASH | TUBE O.D. | C | S1 | H |
| 30542-24-08one piece | M24X1.5 | 12 | 8 | 16 | 3 | 30 | 27 |
| 30542-30-10one piece | M30X2 | 16 | 10 | 20 | 3.5 | 36 | 31 |
| 30542-36-12one piece | M36X2 | 20 | 12 | 25 | 3 | 41 | 34 |
| 30542-42-16one piece | M42X2 | 25 | 16 | 30 | 5 | 50 | 42 |
| 30542-52-20one piece | M52X2 | 32 | 20 | 38 | 6.5 | 60 | 43 |
| 30542-52-24one piece | M52X2 | 40 | 24 | 38 | 6.5 | 60 | 45 |

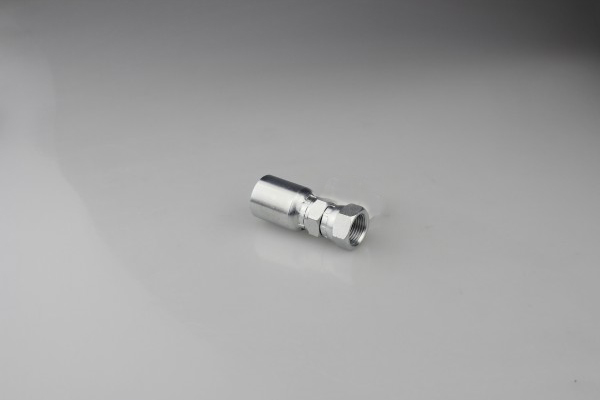

30511one piece are metric female 24 degrees cone heavy type with O-ring integral fittings for one or two wire braided hydraulic hoses. 30511one piece fittings can be crimped with related hoses directly. One piece fittings are finished with zinc plated to customers’ requirements. Standard sizes are showed below on technical data table. Different sizes are acceptable in our factory.
Details
√ Part no.: 30511one piece(Metric Female 24°Cone H.T. With O-ring Integral Fitting For One or Two-Wire Hose)
√ Related types: 30511 fittings; 00110 ferrules or 00210 ferrules; R1AT hoses; R2AT hoses; R1A hoses; R2A hoses; 1SN hoses, 2SN hoses, etc.
√ Equipment related; CNC machines, automatic punch; raw material cutter; ferrule(nut) crimping machine, etc
√ Coating: white zinc-plated; yellow zinc-plated; chrome plated; nickel plated

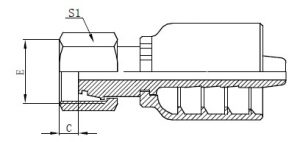

Drawing
Technical Data Table
| 代号 | 螺纹E | 胶管 HOSE BORE | 管子外径 | 尺 寸 DIMENSIONS | ||
| PART NO. | THREAD E | 公称内径DN | 标 号 DASH | TUBE O.D. | C | S1 |
| 30511-16-04one piece | M16X1.5 | 6 | 4 | 8 | 2 | 22 |
| 30511-18-04one piece | M18X1.5 | 6 | 4 | 10 | 2 | 24 |
| 30511-20-05one piece | M20X1.5 | 8 | 5 | 12 | 3 | 27 |
| 30511-20-06one piece | M20X1.5 | 10 | 6 | 12 | 3 | 27 |
| 30511-22-06one piece | M22X1.5 | 10 | 6 | 14 | 3 | 27 |
| 30511-24-08one piece | M24X1.5 | 12 | 8 | 16 | 3 | 30 |
| 30511-30-10one piece | M30X2 | 16 | 10 | 20 | 3.5 | 36 |
| 30511-36-12one piece | M36X2 | 20 | 12 | 25 | 3 | 41 |
| 30511-36-14one piece | M36X2 | 22 | 14 | 25 | 3 | 41 |
| 30511-42-16one piece | M42X2 | 25 | 16 | 30 | 5 | 50 |
| 30511-52-20one piece | M52X2 | 32 | 20 | 38 | 6.5 | 60 |
| 30511-52-24one piece | M52X2 | 40 | 24 | 38 | 6.5 | 60 |

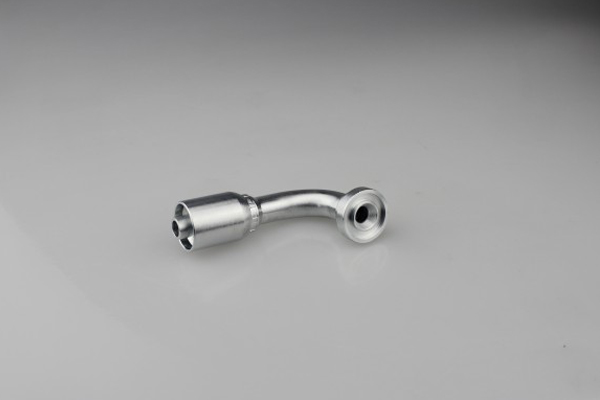

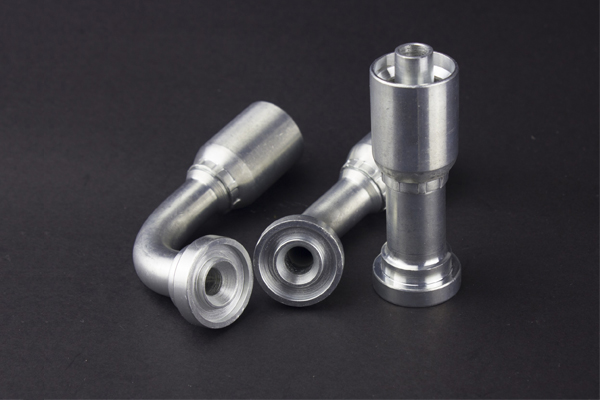

87691one piece fittings are 90 degrees SAE flange 6000PSI for one or two wire braided hydraulic hoses such as R1AT, R2AT, 1SN, 2SN, etc. YH Hydraulic is professional in flange fittings production which including 3000PSI, 6000PSI and 9000PSI. Elbow flange fittings and long drop types are all involved in our daily work.
Details
√ Part no.: 87691one piece(90°SAE Flange 6000PSI For One Or Two Wire Integral Fitting)
√ Material: 45 carbon steel for flange fittings; mild steel for related sleeves
√ Samples: need days to crimp fittings with sleeves; less than 3pcs is free of charge
√ Usage: high quality in hydraulic field; mining equipments; other machines; trucks
√ Delivery time: within 25 days for one order(big or small)
√ OEM service: available if drawings or samples provided

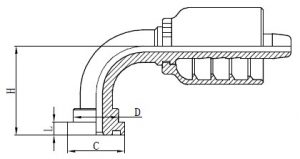

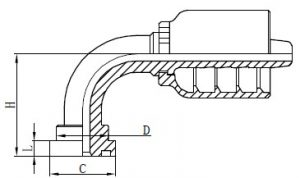

Drawing
Technical Data Table
| 代号 | 法兰尺寸 | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | ||||
| PART NO. | FLANGE SIZE | 公称内径DN | 标 号 DASH | C | D | L | H |
| 87691-08-08one piece | 1/2" | 12 | 8 | 31.8 | 23.9 | 7.9 | 49 |
| 87691-12-12one piece | 3/4" | 20 | 12 | 41.3 | 31.7 | 8.9 | 63.9 |
| 87691-16-16one piece | 1" | 25 | 16 | 47.6 | 38 | 9.6 | 76 |
| 87691-20-20one piece | 1.1/4" | 32 | 20 | 54 | 43.6 | 10.4 | 87.9 |
| 87691-24-24one piece | 1.1/2" | 40 | 24 | 63.5 | 50.8 | 12.7 | 103 |
| 87691-32-32one piece | 2" | 50 | 32 | 79.4 | 66.5 | 12.7 | 124 |

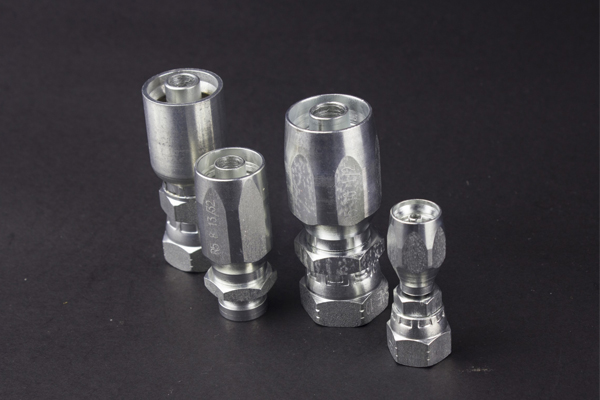

26711one piece series are with thread of JIC female 74 degrees cone seat. 26711one piece fittings are 26711 fittings crimped with ferrules by crimping machines. Fittings and ferrules are precisely manufactured to avoid leaking when crimped with hydraulic hoses. YH are selling best prices and best quality to customers.
Details
√ Part no.: 26711one piece(JIC female 74 degrees cone seat integral fitting)
√ Material: 45 carbon steel(Fitting); 20 carbon steel(ferrule); others acceptable
√ Color: Yellow; White; Silver
√ Surface treatment: Zinc-plated; Chrome plated
√ Delivery time: within 10 days
√ Currency: USD; RMB; EURO; other popular currency available

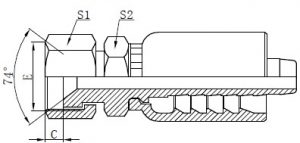

Drawing
Technical Data Table
| 代号 | 螺纹E | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | |||
| PART NO. | THREAD E | 公称内径DN | 标 号 DASH | C | S1 | S2 |
| 26711-04-04one piece | 7/16"X20 | 6 | 4 | 9 | 17 | 17 |
| 26711-06-06one piece | 9/16"X18 | 10 | 6 | 10 | 19 | 19 |
| 26711-08-08one piece | 3/4"X16 | 12 | 8 | 11 | 24 | 22 |
| 26711-10-10one piece | 7/8"X14 | 16 | 8 | 12 | 27 | 27 |
| 26711-12-12one piece | 1.1/16"X12 | 20 | 12 | 13 | 32 | 32 |
| 26711-16-16one piece | 1.5/16"X12 | 25 | 16 | 14 | 38 | 38 |
| 26711-20-20one piece | 1.5/8"X12 | 32 | 20 | 15 | 50 | 50 |
| 26711-24-24one piece | 1.7/8"X12 | 40 | 24 | 19 | 55 | 55 |

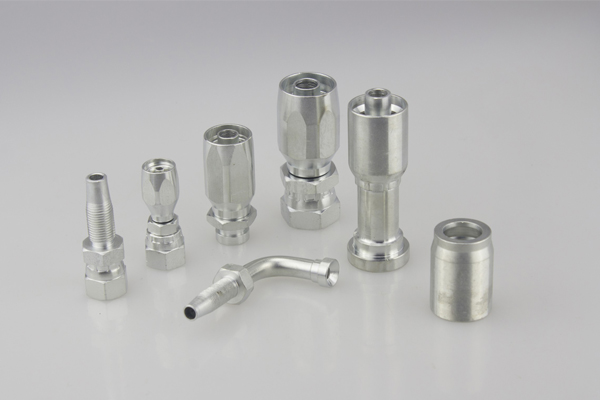

22111one piece is BSP female multiseal integral fitting. Complete sizes from 04 to 24 are involved in YH daily production. One item of 22111 one piece includes 22111 fitting and related ferrules crimped together. It can be used to make hose assembly directly. One piece fittings come in material of mild steel, stainless steel, brass, aluminum, etc.
Details
√ Part no.: 22111one piece(BSP Female Multiseal Integral Fitting)
√ Processing tool: raw material cutting machine; CNC processing machine; crimping machine
√ MOQ: 300PCS one item
√ Sample: less than 3 pieces are free according to stock condition
√ Surface: high degree of smooth surface
√ Coating: Zinc-plated; Chrome-plated; Spray painting

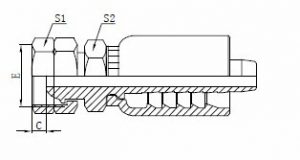

Drawing
Technical Data
| 代号 | 螺纹E | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | |||
| PART NO. | THREAD E | 公称内径DN | 标 号 DASH | C | S1 | S2 |
| 22111-04-04one piece | G1/4"X19 | 6 | 4 | 4 | 17 | 17 |
| 22111-06-06one piece | G3/8"X19 | 10 | 6 | 4 | 22 | 19 |
| 22111-08-08one piece | G1/2"X14 | 12 | 8 | 4.5 | 27 | 22 |
| 22111-10-10one piece | G5/8"X14 | 16 | 10 | 4 | 27 | 27 |
| 22111-12-10one piece | G3/4"X14 | 16 | 10 | 5.5 | 32 | 27 |
| 22111-12-12one piece | G3/4"X14 | 20 | 12 | 5.5 | 32 | 32 |
| 22111-16-16one piece | G1"X11 | 25 | 16 | 7 | 38 | 38 |
| 22111-20-20one piece | G1.1/4"X11 | 32 | 20 | 6 | 50 | 50 |
| 22111-24-24one piece | G1.1/2"X11 | 40 | 24 | 6 | 55 | 55 |
87392one piece series fittings are 90 degrees SAE flange 3000PSI integral fittings for spiral hoses. 87392one piece fittings are produced daily with sizes from 08 to 32. We are selling them at lower prices to meet a wide number of customers. We also can provide technical support to solve problems during our products using.
Details
√ Part no.: 87392one piece(90°SAE Flange 3000PSI For Spiral Hose Integral Fitting)
√ Types: Straight flange fittings; elbow flange fittings; integral flange fittings; long drop flange fittings
√ Standard: Winner; Logo is “YH”; For others, please contact our sales
√ Pressure: 3000PSI; 6000PSI; 9000PSI
√ Delivery time: Within 10 days because of many stock items
√ Currency: USD; Euro; RMB; other popular ones can be accepted by Chinese banks
Drawing
Technical Data Table
| 代号 | 法兰尺寸FLANGE SIZE | 胶管HOSE BORE | 尺 寸 DIMENSIONS | ||||
| PART NO. | 公称内径DN | 标 号 DASH | C | D | L | H | |
| 87392-08-08one piece | 1/2" | 12 | 8 | 30.2 | 23.9 | 7 | 47 |
| 87392-12-12one piece | 3/4" | 20 | 12 | 38.1 | 31.7 | 7 | 59.2 |
| 87392-16-16one piece | 1" | 25 | 16 | 44.4 | 38 | 8.2 | 73.5 |
| 87392-20-20one piece | 1.1/4" | 32 | 20 | 50.8 | 43.2 | 8.2 | 83.5 |
| 87392-24-24one piece | 1.1/2" | 40 | 24 | 60.3 | 50.3 | 8.2 | 97.2 |
| 87392-32-32one piece | 2" | 50 | 32 | 71.4 | 62.2 | 9.8 | 118 |
