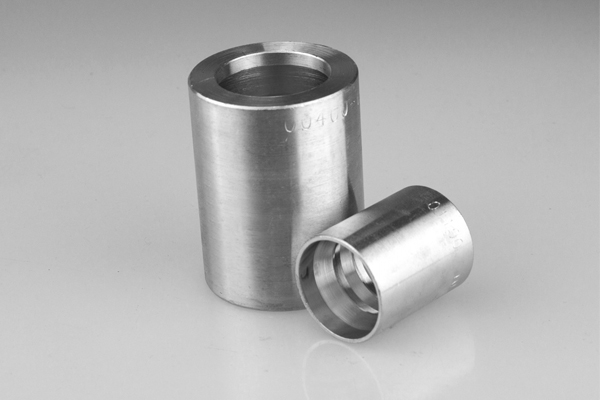

Part no. 00400 is ferrule type for four steel wire braided hose such as R9A, R9R,4SP, 4SH, R12, etc. Hose ferrules are used widely in hydraulic field. YH Hydraulic are manufacturing complete types and sizes to meet different requirements of machine connectors.
Details
√ Part no.: 00400
√ Colors: Yellow; White; Silver(in common)
√ Coating: Zinc plated; Cr3 chrome plated
√ Sizes: from 1/2’’ to 2’’(other sizes are available)
√ Standard: Winner(Eaton)
√ After-sale service: Available

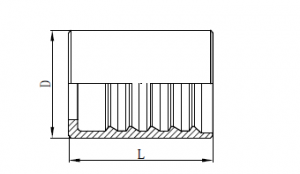

Drawing
Technical Data
| 代号 | 胶管 HOSE BORE | 尺寸 DIMENSIONS | ||
| PART NO. | 公称内径 DN | 标 号 DASH | D | L |
| 00400-08 | 12 | 8 | 29 | 42.2 |
| 00400-10 | 16 | 10 | 32.5 | 43 |
| 00400-12 | 20 | 12 | 38 | 50.5 |
| 00400-16 | 25 | 16 | 46 | 62 |
| 00400-20 | 32 | 20 | 57 | 70.9 |
| 00400-24 | 40 | 24 | 65 | 75 |
| 00400-32 | 50 | 32 | 79 | 80 |

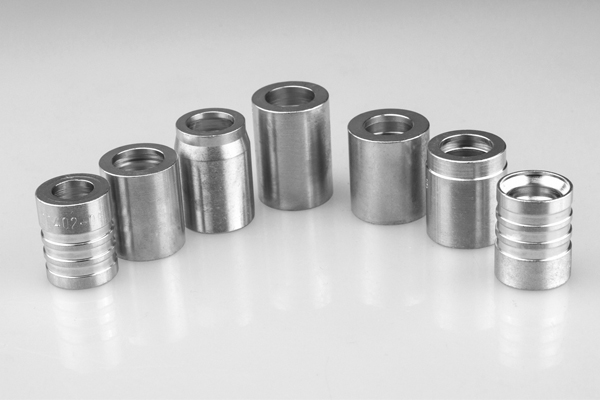

Ferrule 00200 is skive type for SAE 100R2AT or EN853 2SN hydraulic hoses. YH Hydraulic has rich experience in manufacturing hydraulic ferrules that sizes are from 02 to 32. Equipped with advanced testing machines, we ensure the precision of productions.
Details
√ Part no.: 00200
√ Brand Name: YH
√ Place of Origin: Ningbo, China(Mainland)
√ Material: Carbon Steel #20(Mild steel)
√ Delivery time: within 10 days after receiving deposit
√ Package: Nylon plastic; corrugated carton; Multiple plywood case
√ Custom-orientated Service: YH can offer designs to customers and also welcome customers’ drawings or samples.

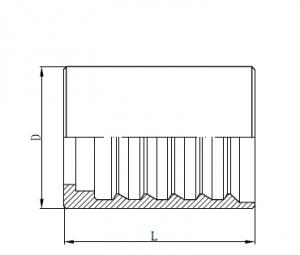

Drawing
Technical Data
| 代号 | 胶管 HOSE BORE | 尺寸 DIMENSIONS | ||
| PART NO. | 公称内径 DN | 标 号 DASH | D | L |
| 00200-02 | 4 | 2 | 20.6 | 27 |
| 00200-04 | 6 | 4 | 21 | 30.2 |
| 00200-05 | 8 | 5 | 24 | 32 |
| 00200-06 | 10 | 6 | 24.5 | 32 |
| 00200-08 | 12 | 8 | 30 | 34 |
| 00200-10 | 16 | 10 | 33.4 | 39.2 |
| 00200-12 | 20 | 12 | 38 | 43.4 |
| 00200-16 | 25 | 16 | 46 | 50 |
| 00200-20 | 32 | 20 | 56 | 57 |
| 00200-24 | 40 | 24 | 62 | 60 |
| 00200-32 | 50 | 32 | 75 | 75 |
