YH Hydraulic deals with sheet of metals in thin plates and Fabrication Industry Process being the leading Hose Crimping Machines Manufacturers and suppliers. To make the purchaser aware of the global technology, we are exactly providing the technology to customer's threshold. We have employed and recruited some able overhaul engineers who are trained on an exemplary level in various application’s philosophies. Offers the appropriate solution for your demand so that it can curb the factors which do result in loss of work and machine malfunction which has a great impact on the performance of the company. This is the reason many of the small and medium based establishments have obtained several categories of equipment through our firm. We trust in a domain where governments and group of people are ever-productive, in fine fettle and supportable, where control is realistic as well as people and entities are engaged to perform and give their best.
In a nutshell, YH Hydraulic has been engaged in the proficiency of Hydraulic hose Crimping Machines Manufacturers in China. The company has its own base in Chennai but it provides service to all over China for the manufacture of Horizontal Crimping Machines, Horizontal Crimping Machines, Nut Crimping Machines, Hose Cutting Machines etc. These kinds of machines are being used to manufacture different type of products and the machines provided by us are equally reliable. For meeting the demands of clients we use the Hydraulic Crimping Machines on a greater scale. Because we are aware that the clients always recommend these kinds of machines and we understand what our client's requirement would be. Apart from that, it includes its beneficial features of its own, like, the less maintenance cost to pay, procedure of installation is very easy and the main aspect, the life of the asset which is important in the long run. Size is its positive attribute as the size of the machines are not very bulky and we can avail the specifications according the customer's preference in the machines. We have thoroughly tested our products which came out to be accessible, reliable, and brings value to our clients.
Hydraulic Hose Crimper 3''
YHHC-48 is a hose crimping machine 3’’. It can crimp the six wire hoses from 3/16’’ to 3’’. YHHC-48C is equipped with 21 sets of dies including a transition die, one die self, one quick change tool and one computer controlled system. YH Hydraulic offers commonly used voltages such as 380V, 220V, 280V, etc. It is important to confirm the voltage and motor power before the purchase with our sales department.
Technical data of YHHC-48C
| Technical Data | YHHC-48C |
| Max hose size | 3’’ 4S |
| Swaging range(mm) | Φ6-130 |
| Main die shoe length(mm) | 110 |
| Standard voltage | 380V/50HZ |
| Motor power | 4kw |
| Optional voltage and motor | 220V/2.2KW |
| Pump(L/min) | 19L |
| Number of swagings/hour | 800 |
| Noise level(dB) | 70 |
| Max opening(mm) | Φ+31mm |
| Crimping force(kN) | 8610 |
| Electic limit switch | Included |
| Electronic control | Included |
| Electric pedal | Included |
| Manual change | Included |
| Dimensions L x W x H(mm) | 685x500x1400 |
| Weight without oil | 420 KGS |
Package details: Gross weight: 450KGS Volume: 92cm x 81cm x 93cm
Standard Dies
| Φ | 13 | 16 | 19 | 22 | 26 | 30 | 34 | 39 | 45 | 51 | 54 | 63 | 67 |
| mm | 55 | 55 | 55 | 55 | 55 | 75 | 75 | 75 | 90 | 90 | 90 | 100 | 100 |
| Φ | 74 | 78 | 84 | 92 | 100 | 108 | 116 |
| mm | 110 | 110 | 110 | 110 | 110 | 110 | 110 |

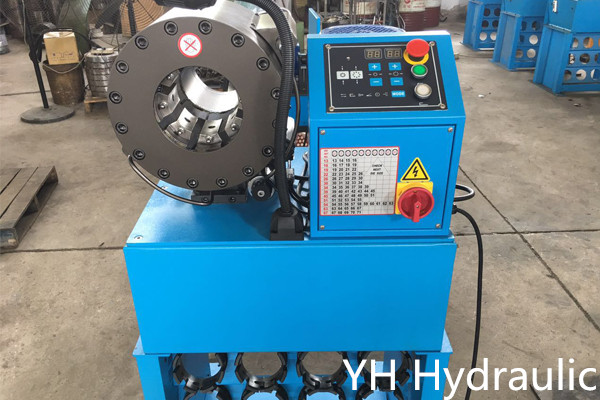

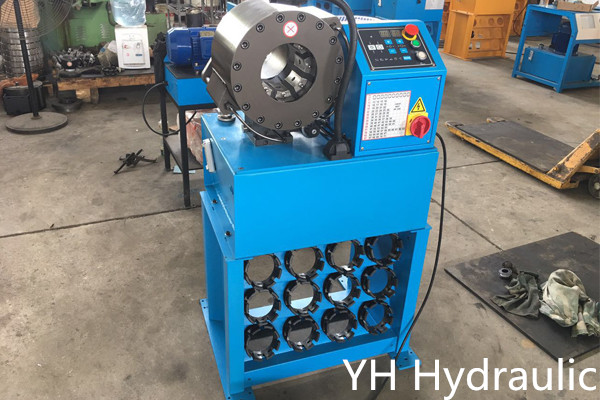

Hose Crimping Machine 1.1/4''
YHHC-20D is a hose crimping machine 1.1/4’’. It can crimp the four wire hoses from 3/16’’ to 1.1/4’’. YHHC-20D is equipped with 10 sets of dies, one die self, one quick change tool and one computer controlled system. Compared with the previous type YHHC-20B, it is a updated type to ensure a better crimping function. YH Hydraulic offers an after-sales service by emails, calls or messages.
Technical data of YHHC-20D
| Technical Data | YHHC-20D |
| Max hose size | 1.1/4’’ 4S |
| Swaging range(mm) | Φ6-87 |
| Main die shoe length(mm) | 85 |
| Standard voltage | 380V/50HZ |
| Motor power | 3kw |
| Optional voltage and motor | 220V/2.2KW |
| Pump(L/min) | 15L |
| Number of swagings/hour | 1000 |
| Noise level(dB) | 70 |
| Max opening(mm) | Φ+34mm |
| Crimping force(kN) | 4600 |
| Electic limit switch | Included |
| Electronic control | Included |
| Electric pedal | Included |
| Manual change | Included |
| Dimensions L x W x H(mm) | 685x530x1250 |
| Weight without oil | 280 KGS |
Package details: Gross weight: 320KGS Volume: 92cm x 81cm x 93cm
Standard Dies
| Φ | 10 | 13 | 16 | 19 | 22 | 26 | 30 | 34 | 39 | 45 | 51 |
| mm | 55 | 55 | 55 | 55 | 55 | 55 | 75 | 75 | 75 | 90 | 90 |

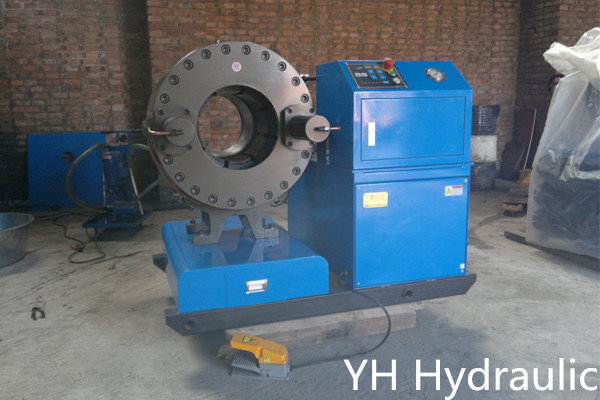

Industrial Hose Crimper 8''
Industrial hose crimper 8’’ YHHC-120F can crimp hydraulic hoses or industial hoses from 4’’ to 8’’. Pls take a note that in the sheet, swaging range refers to the size of inner dimension of the dies not hoses. The actual max.crimping force is 23000kn. It is a powerful crimping machine and equipped with three sets of dies. The die size should be decided by customers. If you need more dies, pls feel free to contact our sales department for quoting the prices. YH Hydraulic is able to offer other crimping machines like max. Size 12’’, 16’’, etc.
Technical data of YHHC-120F
| Technical Data | YHHC-120F |
| Max hose size | 8’’ 4S |
| Swaging range(mm) | Φ102-230 |
| Main die shoe length(mm) | 170 |
| Standard voltage | 380V/50HZ |
| Motor power | 5.5kw |
| Optional voltage and motor | 220V/2.2kw |
| Pump(L/min) | 36L |
| Number of swagings/hour | 400 |
| Noise level(dB) | 75 |
| Max opening(mm) | Φ43mm |
| Crimping force(kN) | 23000 |
| Electic limit switch | Included |
| Electronic control | Included |
| Electric pedal | Included |
| Manual change | Included |
| Dimensions L x W x H(mm) | 1250x820x1250 |
| Weight without oil | 1300 KGS |
Package details: Gross weight: 1500KGS Volume: 122cm x 92cm x 132cm

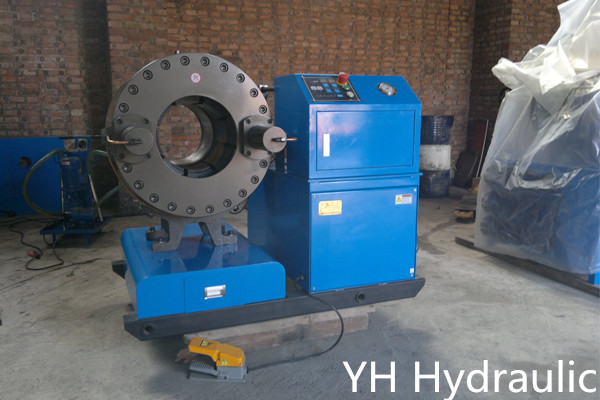

Hydraulic Hose Crimping Machine 6''
Hydraulic hose crimping machine 6’’ YHHC-90F is crimping hoses from 4’’ to 6’’. It can also crimp the hose below 4’’. But as a machine which crimp sizes from 4’’ to 6’’, it is harmful to crimp small sizes of hoses. YHHC-90F is equipped with 6 sets of dies which is designed to customers’ requirement. As each die is heavy, when putting on or taking off a set of dies, it could not be helped with a quick changing tool but should be a manual working. YHHC-90F is a computer system controlled machine and is a powerful machine.
Technical data of YHHC-90F
| Technical Data | YHHC-90F |
| Max hose size | 6’’ 6S |
| Swaging range(mm) | Φ70-190 |
| Main die shoe length(mm) | 180 |
| Standard voltage | 380V/50HZ |
| Motor power | 5.5kw |
| Optional voltage and motor | 220V/2.2KW |
| Pump(L/min) | 36L |
| Number of swagings/hour | 600 |
| Noise level(dB) | 75 |
| Max opening(mm) | Φ40mm |
| Crimping force(kN) | 21000 |
| Electic limit switch | Included |
| Electronic control | Included |
| Electric pedal | Included |
| Manual change | Included |
| Dimensions L x W x H(mm) | 1250x830x1100 |
| Weight without oil | 1080 KGS |
Package details: Gross weight: 1200KGS Volume: 122cm x 92cm x 132cm

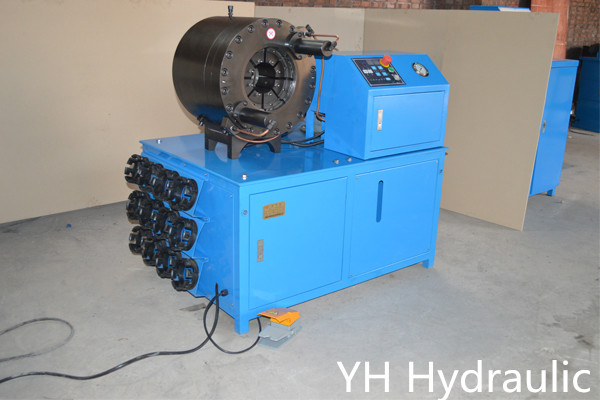

Hose Crimper 4''
Hose crimper 4’’ YHHC-60A can crimp hydraulic hoses up to 4’’. YHHC-60A is equipped with 23 sets of dies, one quick change tool and one computer controlled system. With a transition die, it is able to work as YHHC-32D crimping machine to crimp some small hoses. From YH Hydraulic, you can buy one machine or purchase in bulk. We are happy to discuss the prices with you. For more details, pls feel free to advise our sales department.
Technical data of YHHC-60A
| Technical Data | YHHC-60A |
| Max hose size | 4’’ 6S |
| Swaging range(mm) | Φ6-170 |
| Main die shoe length(mm) | 120 |
| Standard voltage | 380V/50HZ |
| Motor power | 5.5kw |
| Optional voltage and motor | 220V/2.2KW |
| Pump(L/min) | 36L |
| Number of swagings/hour | 800 |
| Noise level(dB) | 75 |
| Max opening(mm) | Φ+35mm |
| Crimping force(kN) | 12560 |
| Electic limit switch | Included |
| Electronic control | Included |
| Electric pedal | Included |
| Manual change | Included |
| Dimensions L x W x H(mm) | 1100x700x1200 |
| Weight without oil | 580 KGS |
Package details: 700KGS Volume: 122cm x 92cm x 132cm
Standard Dies
| Φ | 13 | 16 | 19 | 22 | 26 | 30 | 34 | 39 | 45 | 51 | 54 | 63 | 67 |
| mm | 55 | 55 | 55 | 55 | 55 | 75 | 75 | 75 | 90 | 90 | 90 | 100 | 100 |
| Φ | 72 | 78 | 82 | 91 | 95 | 102 | 114 | 121 | 132 |
| mm | 110 | 110 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |

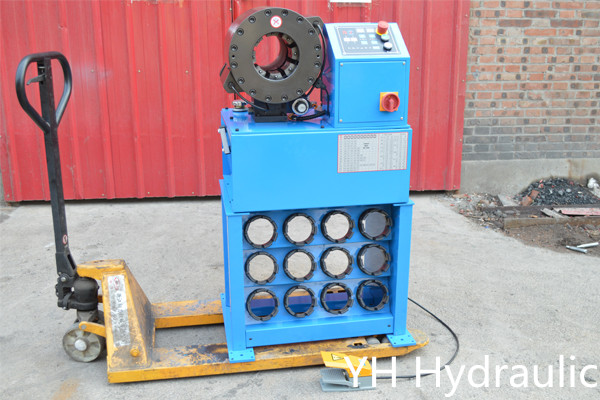

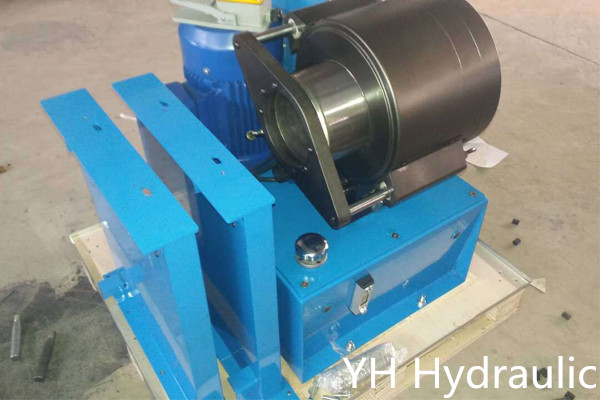

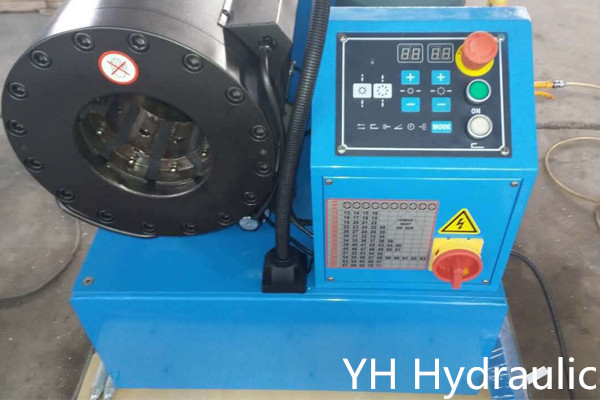

Hose Crimping Machine 2"
YHHC-32D is a hose crimping machine 2’’. It can crimp the six wire hoses from 3/16’’ to 2’’. YHHC-32D is equipped with 13 sets of dies, one die self, one quick change tool and one computer controlled system. It can make the crimping work much easier and more efficient. YH Hydraulic is also offering the crimping machine up to 1.1/4’’, 3’’, 4’’, 6'', 8'',16'' etc. Please feel free to contact us for any machine you need.
Technical data of YHHC-32D
| Technical Data | YHHC-32D |
| Max hose size | 2’’ 6S |
| Swaging range(mm) | Φ6-87 |
| Main die shoe length(mm) | 85 |
| Standard voltage | 380V/50HZ |
| Motor power | 4kw |
| Optional voltage and motor | 220V/2.2KW |
| Pump(L/min) | 19L |
| Number of swagings/hour | 1000 |
| Noise level(dB) | 70 |
| Max opening(mm) | Φ+34mm |
| Crimping force(kN) | 5260 |
| Electic limit switch | Included |
| Electronic control | Included |
| Electric pedal | Included |
| Manual change | Included |
| Dimensions L x W x H(mm) | 650x500x1300 |
| Weight without oil | 350 KGS |
Package details: 370KGS Volume: 92cm x 81cm x 93cm
Standard Dies
| Φ | 13 | 16 | 19 | 22 | 26 | 30 | 34 | 39 | 45 | 51 | 54 | 63 | 67 |
| mm | 55 | 55 | 55 | 55 | 55 | 75 | 75 | 75 | 90 | 90 | 90 | 100 | 100 |

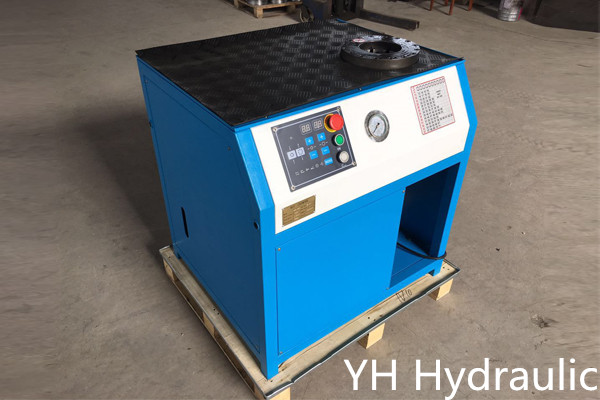

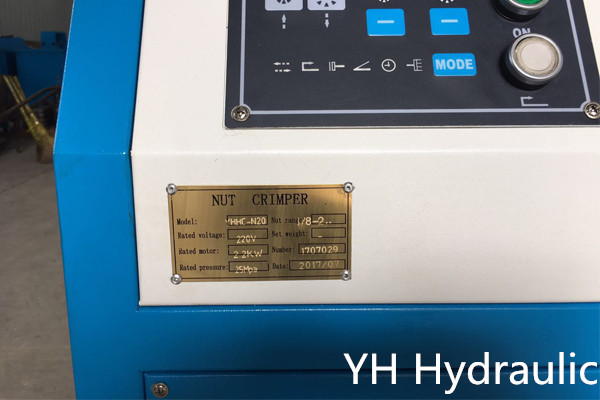

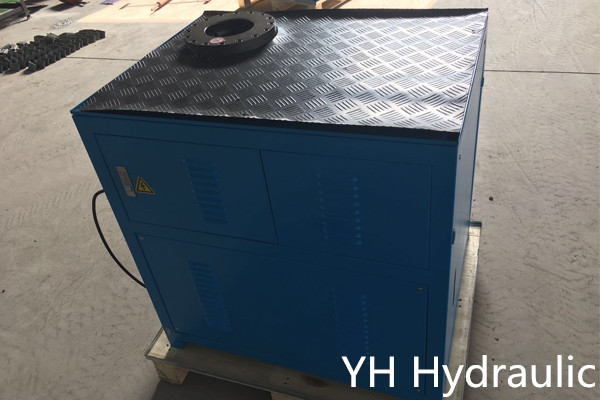

Ferrule Crimping Machine
Ferrule crimping machine YHHC-N20 is a ferrule crimping machine to make one piece fittings. It is more powerful than YHHC-N10. It can also press nut to make female fittings like JIC femal, BSP female, etc.
Ferrule crimping machine YHHC-N20 is a ferrule crimping machine to make one piece fittings. It is more powerful than YHHC-N10. It can also press nut to make female fittings like JIC femal, BSP female, etc. Ferrule crimping machine YHHC-N20 is equipped with 13 sets of dies up to 2’’. It has a computer controlled system. All the details are showed below.
Technical data of YHHC-N20
| Technical Data | YHHC-N20 |
| Swaging force(KN) | 2290 |
| Scope of work | Φ6-76 |
| Standard voltage | 380V/50HZ |
| Die opening | Φ+30mm |
| Optional voltage and power | 220V/2.2KW |
| Electronic control | Included |
| Electric pedal | Included |
| Special dies | Optional |
| Dimensions L x W x H(mm) | 850x710x830 |
| Weight without oil | 260 KGS |
Package details: Gross weight: 275KGS Volume: 90cm x 80cm x 100cm

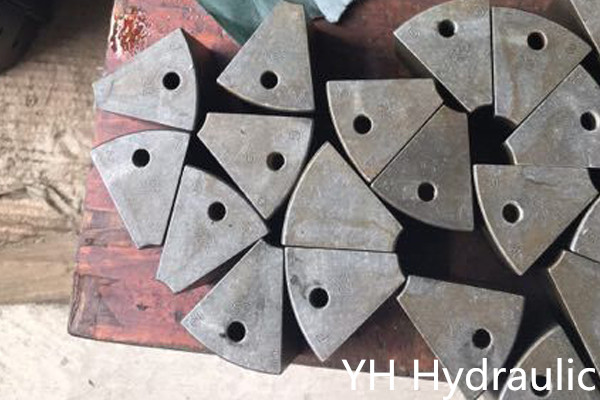

Standard Dies
| Φ | 12 | 14 | 16 | 19 | 22 | 26 | 30 | 34 | 39 | 45 | 52 | 57 | 66 |
| mm | 3 | 3 | 4 | 4 | 4.5 | 4.5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |

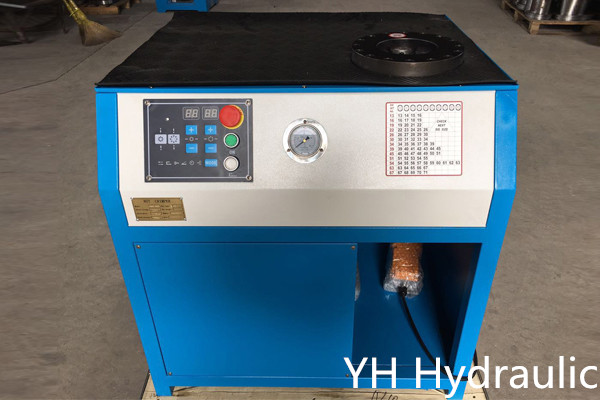

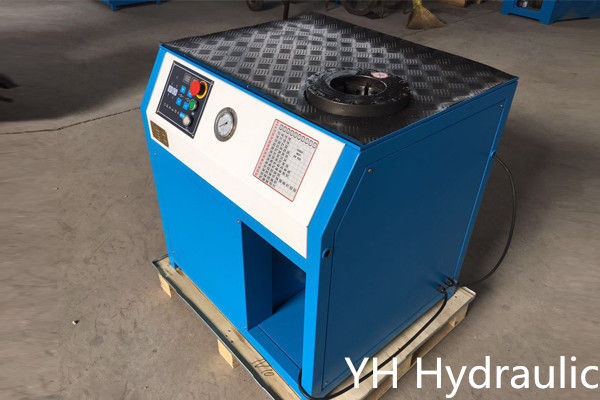

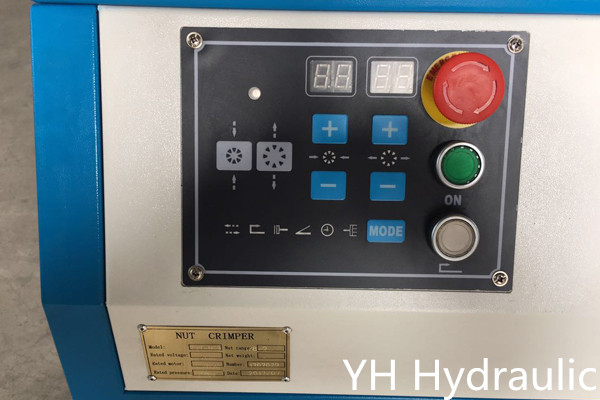

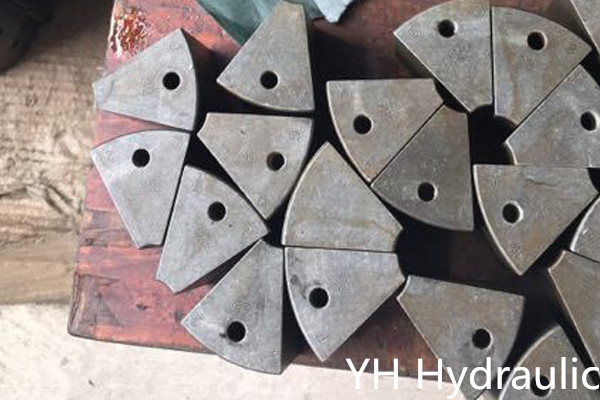

Nut Crimping Machine
YHHC-N10 is a nut crimping machine which can crimp nut with fittings up to 2". It includes 13 sets of standard dies. We keep a enough stock for quick shipment which voltage is 220V or 380V. For any special demand, pls feel free to contact us.
Nut crimping machine 2" YHHC-N10 can crimp nut with fittings up to 2". This machine provide instant, precise and constant performance when Crimping nut-, and ferrule- operations are performed quickly, accurately, and consistently. It includes 13 sets of standard dies. We keep a enough stock for quick shipment which voltage is 220V or 380V. For any special demand, pls feel free to contact us.
Technical data of YHHC-N10
| Technical Data | YHHC-N10 |
| Swaging force(KN) | 1560 |
| Scope of work | Φ6-76 |
| Standard voltage | 380V/50HZ |
| Die opening | Φ+30mm |
| Optional voltage and power | 220V/2.2KW |
| Electronic control | Included |
| Electric pedal | Included |
| Special dies | Optional |
| Dimensions L x W x H(mm) | 850x710x830 |
| Weight without oil | 260 KGS |
Package details: Gross weight: 275KGS Volume: 90cm x 80cm x 100cm
Standard Dies
| Φ | 12 | 14 | 16 | 19 | 22 | 26 | 30 | 34 | 39 | 45 | 52 | 57 | 66 |
| mm | 3 | 3 | 4 | 4 | 4.5 | 4.5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
