Part no.00018 is ferrule special for SAE 100R7 or R8 hoses. YH Hydraulic is manufacturing standard sizes of this type. Ferrules are marked with “YH” letters but no brands or others are acceptable in our factory. Most ferrules are galvanized and common colors are yellow and white. Different colors do not mean different quality. Colors are only for customers’ preference.
Details
√ Part no.: 00018(Ferrule For SAE 100R7/R8 Hose)
√ Sizes: sizes showed on technical data are our standard sizes but customer required dimensions are available
√ Finish: Galvanized; Chrome plated; Spray painted
√ MOQ details: for stock items, MOQ not required; Others, 300PCS one item
√ Samples: less than 5 PCS free of charge
1. Different models of hose ferrules for your choice
√ Ferrules for SAE 100R1AT, DIN EN853 1SN: 00110 and 00100
√ Ferrules for SAE 100R2AT, DIN EN853 2SN: 00210 and 00200
√ Ferrules for SAE 100R1AT, DIN EN853 1SN, SAE 100R2AT, DIN EN853 2SN: 03310
√ Ferrules for DIN EN856 4SP, DIN EN865 4SH, SAE 100R12: 00400
√ Ferrules for SAE 100R7/R8 hoses: 00018
2. Raw Material
√ 20 carbon steel 316 stainless steel 304 stainless steel
3. Flow chat
√ YH Hydraulic has rich experiences in SAE 100R7 Hydraulic Ferrule production. We are able to supply different kinds of hydraulic hose ferrules, such as ferrules for R1AT 1SN hoses, ferrules for R2AT 2SN hoses, ferrules for 4SP 4SH R12 hoses, etc. Also we can produce sizes with customers’ requirements. It is a perfect idea to crimp good ferrules with fittings to make hose assemblies without leaking.
√ Raw material cutting--Raw material forging--CNC machines fashioning--Marking part no. on ferrule body--Galvanization--Packing

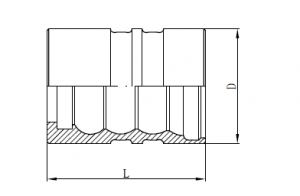

Drawing
Technical Data
| 代号 | 胶管 HOSE BORE | 尺寸 DIMENSIONS | ||
| PART NO. | 公称内径 DN | 标 号 DASH | D | L |
| 00018-03 | 5 | 3 | 14 | 25 |
| 00018-04 | 6 | 4 | 17 | 30 |
| 00018-05 | 8 | 5 | 19 | 30 |
| 00018-06 | 10 | 6 | 21 | 30 |
| 00018-08 | 12 | 8 | 25.5 | 34.2 |
| 00018-10 | 16 | 10 | 29 | 38.5 |
| 00018-12 | 20 | 12 | 33 | 43 |
Ferrule 00605 is interlock type for R13 strengthen hoses used in different hydraulic machines. Ferrules manufactured in YH factory are for high, medium and low-pressure hose assemblies. Our part no.s are based on Winner standard. For other standards, please contact our sales or download e-catalog showed below to confirm with our part no.s.
Details
√ Part no.: 00605(Interlock Ferrule For R13 Strengthen Hose)
√ Material: Carbon Steel #20; Stainless Steel; Copper; Aluminum
√ Features: Highly strict quality control; Rich investments of equipments; Good sealing and high-strength; high degrees of smooth surface
√ Application: Automobile, Engineering, Lathe, Metallurgy, Petroleum, Mining, Construction, Shipbuilding and many other fields related with hydraulic and its delivery system of fluid or gas.

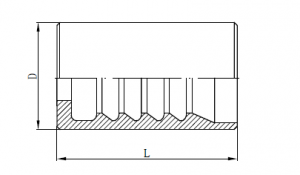

Drawing
Technical Data
| 代号 | 胶管 HOSE BORE | 尺寸 DIMENSIONS | ||
| PART NO. | 公称内径 DN | 标号 DASH | D | L |
| 00605-08 | 12 | 8 | 33 | 46 |
| 00605-12 | 20 | 12 | 40 | 55 |
| 00605-16 | 25 | 16 | 49 | 64 |
| 00605-20 | 32 | 20 | 61 | 70 |
| 00605-24 | 40 | 24 | 70 | 82.5 |
| 00605-32 | 50 | 32 | 85 | 83.2 |

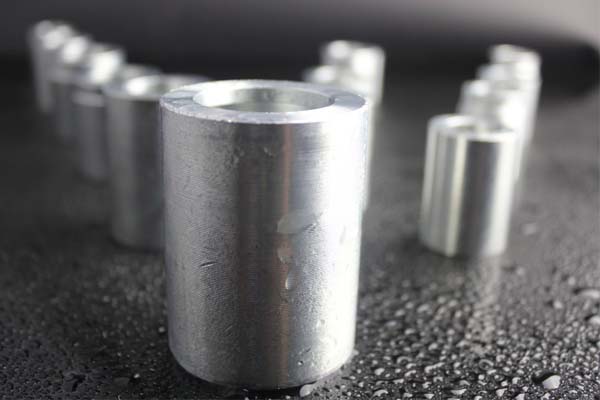

Ferrule 00200 is skive type for SAE 100R2AT or EN853 2SN hydraulic hoses. YH Hydraulic has rich experience in manufacturing hydraulic ferrules that sizes are from 02 to 32. Equipped with advanced testing machines, we ensure the precision of productions.
Details
√ Part no.: 00200
√ Brand Name: YH
√ Place of Origin: Ningbo, China(Mainland)
√ Material: Carbon Steel #20(Mild steel)
√ Delivery time: within 10 days after receiving deposit
√ Package: Nylon plastic; corrugated carton; Multiple plywood case
√ Custom-orientated Service: YH can offer designs to customers and also welcome customers’ drawings or samples.

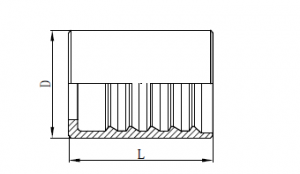

Drawing
Technical Data
| 代号 | 胶管 HOSE BORE | 尺寸 DIMENSIONS | ||
| PART NO. | 公称内径 DN | 标 号 DASH | D | L |
| 00200-02 | 4 | 2 | 20.6 | 27 |
| 00200-04 | 6 | 4 | 21 | 30.2 |
| 00200-05 | 8 | 5 | 24 | 32 |
| 00200-06 | 10 | 6 | 24.5 | 32 |
| 00200-08 | 12 | 8 | 30 | 34 |
| 00200-10 | 16 | 10 | 33.4 | 39.2 |
| 00200-12 | 20 | 12 | 38 | 43.4 |
| 00200-16 | 25 | 16 | 46 | 50 |
| 00200-20 | 32 | 20 | 56 | 57 |
| 00200-24 | 40 | 24 | 62 | 60 |
| 00200-32 | 50 | 32 | 75 | 75 |
We are professional hydraulic ferrules(03310) manufacturer in Ningbo, China. Item 03310 is a kind of non-skive ferrules for SAE 100R1AT or R2AT Hose. Plain carbon steel is material mostly used in our factory. Complete sizes for this type are involved in our daily production from 3/16’’ to 2’’.
Details
√ Part no.: 03310
√ Usage: Equipped with fittings for SAE 100R1AT or R2AT hose
√ Surface: zinc-plated; customers’ demands
√ Processing equipment: CNC machines; Automatic punch
√ Stock products: available.

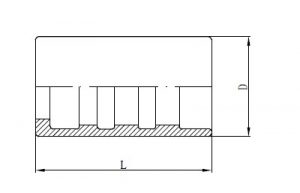

Drawing
Technical Data
| 代号 | 胶管 HOSE BORE | 尺寸 DIMENSIONS | ||
| PART NO. | 公称内径 DN | 标 号 DASH | D | L |
| 03310-03 | 5 | 3 | 19 | 24 |
| 03310-04 | 6 | 4 | 23 | 30.2 |
| 03310-05 | 8 | 5 | 24 | 31.3 |
| 03310-06 | 10 | 6 | 26 | 32 |
| 03310-08 | 12 | 8 | 29 | 34 |
| 03310-10 | 16 | 10 | 33 | 37.5 |
| 03310-12 | 20 | 12 | 37 | 43 |
| 03310-16 | 25 | 16 | 46 | 51 |
| 03310-20 | 32 | 20 | 59 | 57 |
| 03310-24 | 40 | 24 | 67 | 60 |
| 03310-32 | 50 | 32 | 80 | 75 |

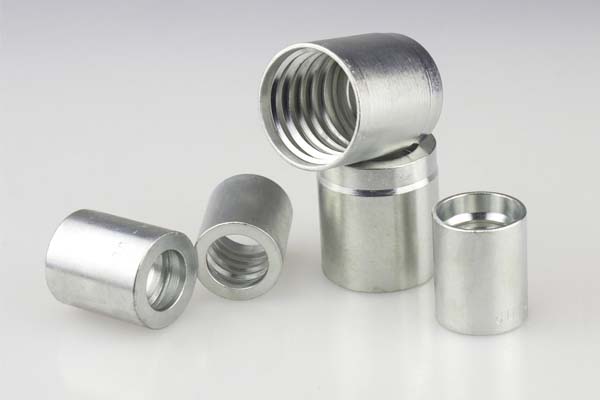

00210 is ferrule for SAE 100R2AT hose or EN853 2SN hose. To finish production of 00210 ferrules, it takes more than 8 steps from material cutting to products package in YH factory. Its dimensions are designed to international standard demands. High degrees of smooth finish ensure its high quality that can satisfy customers’ needs with its special and qualified features.
Details
√ Part no.: 00210
√ Ferrule Color: Yellow; White; Silver
√ Coating: Galvanization; chrome plate
√ Feature: Good color and luster; Ferrule inner cleaned; The burr and the impurities avoided.
√ Material: Carbon Steel; Stainless Steel(SS304 or SS316)
Drawing
Technical Data
| 代号 | 胶管 HOSE BORE | 尺寸 DIMENSIONS | ||
| PART NO. | 公称内径 DN | 标 号 DASH | D | L |
| 00210-04 | 6 | 4 | 20.5 | 30 |
| 00210-05 | 8 | 5 | 22 | 32.4 |
| 00210-06 | 10 | 6 | 25 | 32 |
| 00210-08 | 12 | 8 | 28.6 | 35 |
| 00210-10 | 16 | 10 | 32 | 38 |
| 00210-12 | 20 | 12 | 36 | 44.2 |
| 00210-16 | 25 | 16 | 45 | 52 |
| 00210-20 | 32 | 20 | 56 | 57 |
| 00210-24 | 40 | 24 | 62.5 | 60.5 |
| 00210-32 | 50 | 32 | 75 | 75 |
