Hydraulic Bolts and Nuts

Hydraulic nuts are designed to tighten large diameter bolts without causing the damage that occurs when hammer wrenches are employed. With the hydraulic nut solutions, customers can tighten large bolts with little to no effort and do so without causing any damage.

Hydraulic nuts enable large diameter bolts to be tensioned with ease to high and accurate preloads. A hydraulic pump activates the internal jacking system, so the effort required to tighten a very large diameter bolt is reduced to the effort needed to operate the pump.

As there is no nut rotation during tightening, the operation can be performed in a confined space and torsional stresses on thread damage are eliminated. Any number of hydraulic nuts can be connected together for simultaneous operation, ensuring all bolts in the joint can be evenly loaded to the same high and accurate preload.

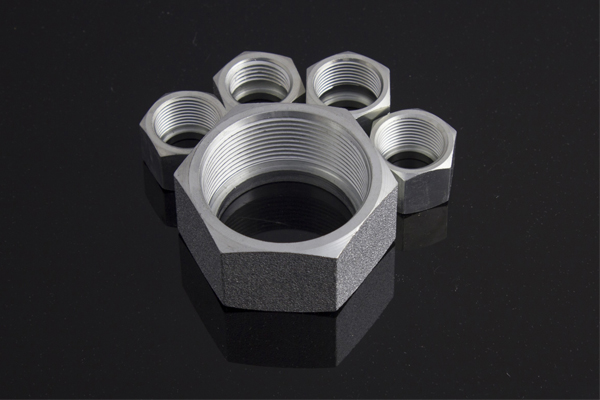

Hydraulic components NS is a type of retaining nuts heavy type which has complete items presented on technical data table. YH insist on quality control strictly so retaining nuts are inspected before delivery. YH can design or provide OEM service to customers if drawings or samples provided.

√ Part no.: NS(Retaining Nuts Heavy Type)
√ Types of nuts: Hex nuts, lock nuts, retaining nuts, insert nuts, etc
√ Material of nuts: carbon steel; alloy steel; stainless steel or others required
√ Surface of finish: Plain; black or white zinc plated; nickel plated; others
√ Delivery time: within 10 days or based on invoice said

Heavy Type Retaining Nut Drawing

Technical Data Table

代号	螺纹	管子外径	尺寸 DIMENSIONS
PART NO.	THREAD E	TUBE O.D. D1	A	d	S1
NS-14	M14X1.5	6	16	6	17
NS-16	M16X1.5	8	17	8	19
NS-18	M18X1.5	10	18.5	10	22
NS-20	M20X1.5	12	19	12	24
NS-22	M22X1.5	14	20	14	27
NS-24	M24X1.5	16	20	16	30
NS-30	M30X2	20	24	20	36
NS-36	M36X2	25	26	25	41
NS-52	M52X2	38	31	38	60

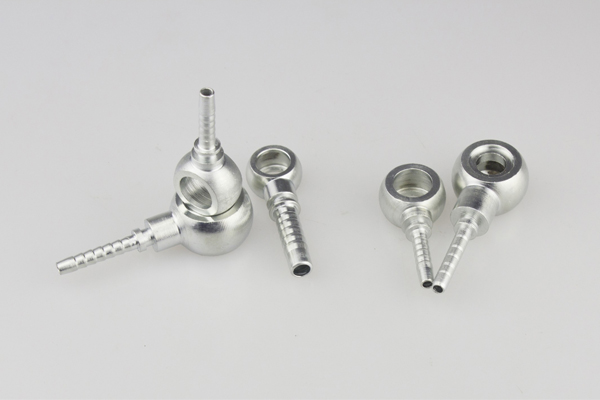

Metric banjo eye fittings 70011 are used with either rubber or polymid hard plastic hose. Hollow fittings are used in conjunction with our banjo for fuel, air oil, etc. Banjo fittings from YH are good for high pressure applications. These fittings come in zinc or yellow zinc plated finishes.

√ Part no.: 70011(Metric Banjo DIN7622)
√ Sizes: From M8 to M33 are popularly produced
√ Prices: YH will offer best quality products with lowest prices as we can.
√ Delivery time: re-produced products needs 25 days for one order; as discussed; stock products needs 5 days.
√ Samples: less than 5pcs is free of charged for checking quality.

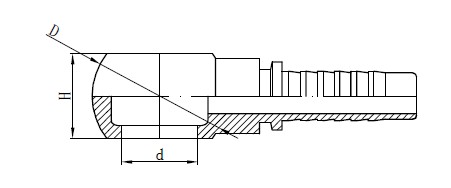

Metric Banjo Hose Fitting Drawing

Technical Data Table

代号	螺纹E	胶管 HOSE BORE		尺寸 DIMENSIONS
PART NO.	THREAD E	公称内径DN	标号 DASH	d	D	H
70011-08-04	M8X1	6	4	8	20	13
70011-10-04	M10X1	6	4	10	22	13
70011-12-04	M12X1.5	6	4	12	20	12
70011-12-05	M12X1.5	8	5	12	20	12
70011-14-04	M14X1.5	6	4	14	24	14
70011-14-05	M14X1.5	8	5	14	24	14
70011-14-06	M14X1.5	10	6	14	24	14
70011-14-08	M14X1.5	12	8	14	24	14
70011-16-06	M16X1.5	10	6	16	28	16
70011-16-08	M16X1.5	12	8	16	28	16
70011-18-06	M18X1.5	10	6	18	32	20
70011-18-08	M18X1.5	12	8	18	32	20
70011-18-10	M18X1.5	16	10	18	32	20
70011-20-08	M20X1.5	12	8	20	36	22
70011-20-10	M20X1.5	16	10	20	36	22
70011-22-08	M22X1.5	12	8	22	38	25
70011-22-10	M22X1.5	16	10	22	38	25
70011-22-12	M22X1.5	22	12	22	38	25
70011-26-12	M26X1.5	22	12	26	46	30
70011-27-12	M27X1.5	22	12	27	52	36
70011-30-12	M30X1.5	22	12	30	54	36
70011-30-16	M30X1.5	25	16	30	54	36
70011-33-16	M33X1.5	25	16	33	60	36

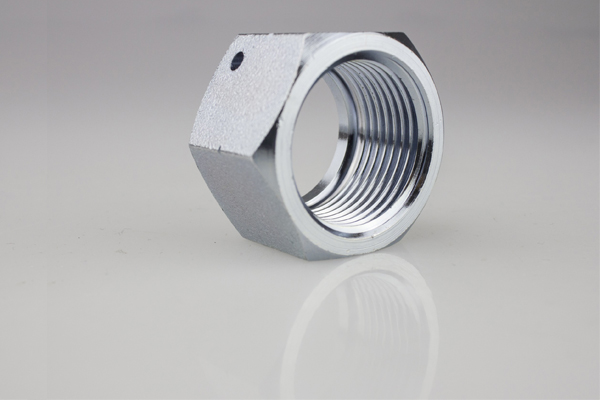

NL series retaining light type nut are daily manufactured in YH Hydraulic. NL series nuts are with metric thread and based on Winner production standard. NL nuts come in material of carbon steel, mild steel, stainless steel, brass, etc. Complete sizes are produced by CNC machine in YH factory to control its right hardness.

√ Part no.: NL(Retaining Nuts Light Type)
√ Material: 45 carbon steel; stainless steel; brass
√ Custom-orientated service: Available if drawings or samples provided
√ Currency: USD; RMB; EURO; others
√ Delivery time: Within 20 days or to invoice made date

Hydraulic Retaining Nuts Drawing

Technical Data Table

代号	螺纹	管子外径	尺寸 DIMENSIONS
PART NO.	THREAD E	TUBE O.D. D1	A	d	S1
NL-12	M12X1.5	6	15	6	14
NL-14	M14X1.5	8	16	8	17
NL-16	M16X1.5	10	17	10	19
NL-18	M18X1.5	12	18.5	12	22
NL-22	M22X1.5	15	20	15	27
NL-26	M26X1.5	18	21	18	32
NL-30	M30X2	22	24	22	36
NL-36	M36X2	28	26	28	41
NL-52	M52X2	42	31	42	60

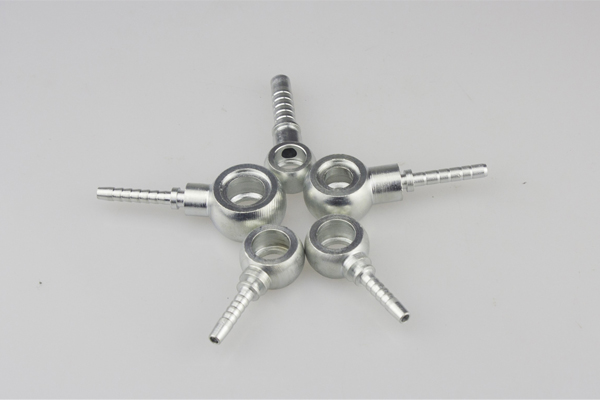

72011 BSP banjo fitting comprises a perforated hollow bolt and spherical union for fluid transfer. Banjo fittings are commonly found in automotive fuel, oil and hydraulic systems like brakes and clutch. This name stems are from the shape of fittings which have a large circular section connected to a thinner pipe, generally similar to the shape of a banjo.

√ Part no.: 72011(BSP Banjo)
√ Usage: High pressure application
√ Sizes: From 1/4’’ to 1’’ produced in YH Hydraulic mostly; other sizes are available
√ Advantage: Quality assurance and favorable prices
√ Delivery: Timely to invoice requires
√ Samples: Less than 5pcs free of charge if stock items

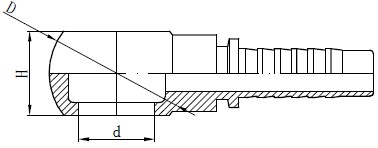

BSP Banjo Fitting Drawing

Technical Data Table

代号	螺纹E	胶管 HOSE BORE		尺寸 DIMENSIONS
PART NO.	THREAD E	公称内径DN	标号 DASH	d	D	H
72011-04-04	G1/4"	6	4	13.3	24	15
72011-04-05	G1/4"	8	5	13.3	24	15
72011-06-05	G3/8"	10	6	16.7	29	20
72011-06-06	G3/8"	10	6	16.7	29	19
72011-08-06	G1/2"	12	8	21	38	25
72011-08-08	G1/2"	12	8	21	38	25
72011-10-10	G5/8"	16	10	23	40	27
72011-12-12	G3/4"	20	12	26.5	46	31
72011-16-16	G1"	25	16	33.3	60	42
