YH Hydraulic hose cutting machines have been a synonym for highest precision and robustness for many decades. The solid and compact tools distinguish themselves by their safe and high-quality cutting function. A distinct property is the positioning of the extraordinarily sharp cutting blades close to the powerful motors. This significantly reduces vibration – which is one of the reasons for extreme durability and low maintenance expenses. Users also appreciate cutting with almost no scales and extraordinarily little smoke. Low energy consumption contributes to high economic efficiency, in particular in series production. CE-compliant brake motors and protection enclosures not impeding the working progress leaves nothing to be desired, even in safety issues.
Drive motors with double bearings and oversized shafts avoid vibration and extend service life by maximizing blade and motor life. This also allows for faster and straighter cutting. Lateral guide rollers and holding clamps make precise cuts. Comes with steel blade that lasts longer before needing replacement or sharpening.
It also meets safety regulations with brake motor and operating guarding.
YH Hydraulic hose cutting machines distinguish themselves by offering a high quality and safe hose cutting tool solution. Our hose cutting supplier provide us with sharp hose cutting machine blades, coupled with carefully selected powerful motors which reduces vibration and gives consistent hose cutting results time and time again.

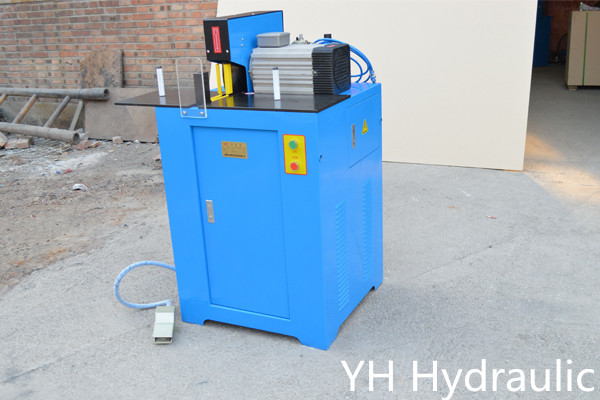

Rubber Hose Cutting Machine
Rubber hose cutting machine YHHC-C20 is a pneumatic cutting machine which can cut four wire hoses up to 2", and two wire hoses up to 3". Compared with YHHC-C10 cutting machine, it has equipment to cool the atomization and absorb the smog and dirt. Our blade is imported from Germany which has a good working in cutting the machines. And it ensures a long life term.
Technical data of YHHC-C20
Technical Data | YHHC-C20 |
Max hose size | 2" four wire, 3" two wire |
Max Φ | 100mm |
Revolutions/minute | 2900r/min |
Pneumaticinput | 0.8mpa |
Blade Φ | 350mm |
Standard Voltage | 380V/50HZ |
Motor power | 5.5kw |
Safety protections | included |
Suction connection | included |
Suction & remove dirt equipment | included |
Measuring hose holder | optional |
Dimensions L x W x H(mm) | 810x610x1150 |
Weight | 180 KGS |
Package details: Gross weight: 240KGS Volume: 95cm*70cm*145 cm

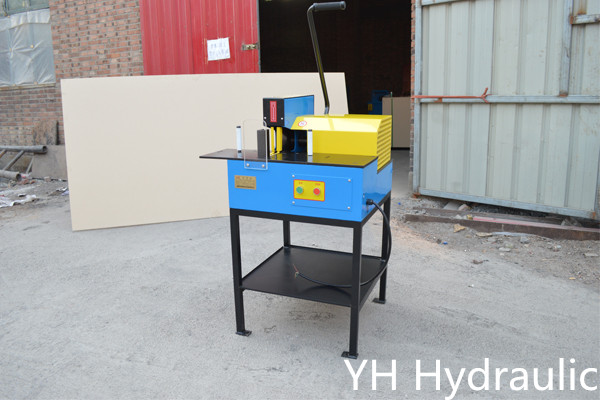

Automatic Hose Cutting Machine
Hose cutting machine YHHC-C10 can crimp four wire hoses up to 2" and two wire hoses up to 3". The cutting machine is equipped with high quality blade which is imported from Germany. We are able to offer different voltage as customers wish such as 380V, 220V, 280V, etc. But the purchase, pls make sure the voltage which you can use in working room. Also we are able to offer Chinese blade which can cut the hoses up to 1".
Technical data of YHHC-C10
Technical Data | YHHC-C10 |
Max hose size | 2" four wire, 3" two wire |
Max Φ | 100mm |
Revolutions/minute | 2900r/min |
Pneumaticinput | - |
Blade Φ | 350mm |
Standard Voltage | 380V/50HZ |
Motor power | 3kw |
Safety protections | included |
Suction connection | included |
Measuring hose holder | optional |
Dimensions L x W x H(mm) | 730x650x1000 |
Weight | 90 KGS |
Package details: Gross weight: 100KGS Volume: 80cm*70cm*122 cm
